The best heavy-duty monitor arms

Search for a heavy-duty monitor arm and the results sort themselves by one number: the maximum weight. Thirty-three pounds. Forty-four. Fifty-nine. It is the first line of every listing and the thing the whole category is sold on. It is also, on its own, the least useful of the three numbers that actually decide whether an arm holds yourscreen where you want it — and for one very common search, it is close to a trap.

This is the page for genuinely big and heavy screens: 34″ to 57″ ultrawides, heavy 4K panels, the displays a normal arm sags under. If yours is a standard-weight monitor, you are on the wrong page — the main monitor arm roundup is the one you want, because, as you will see, the best heavy-duty arm here is specifically wrong for a light screen. And if your screen is a wide panel rather than a heavy one, the ultrawide roundup overlaps with this one and is worth reading alongside it.

We have not mounted a screen on any of these. There is no lab; Stephen read each manufacturer’s own spec sheet and listing, pulled the numbers that decide the purchase, and cited every one. Where a manufacturer does not publish a figure — and three of these five publish no warranty term at all — the Spec Line shows an em-dash rather than a guess. That is the whole method, and it is the reason this page can tell you the one thing the listings will not.

What we ranked on

Three numbers, in this order, and none of them is the bare maximum weight.

The weight range — including the minimum. A counterbalanced arm does not hold your monitor up so much as push back against it, and it is tensioned for a weight. Too heavy and it sags; too light and it floats upward and will not stay put. Heavy-duty arms are tensioned for heavy screens, so their floors are high: the Ergotron HX will not settle a monitor under 20 lb. That is why we print the range and not the ceiling — a 24″ panel that weighs less than the floor behaves exactly as physics says it should, and an owner calls it “faulty” when it is simply the wrong arm. Weigh your screen without its stand from the panel-weight figures and check it against both ends.

Whether the VESA head reaches 200mm.Small screens use a 75 or 100mm hole pattern; big 40″-and-up panels and many large ultrawides use 200mm(200×100 or 200×200). A 200mm screen will not bolt to a 100mm arm without an adapter, full stop. On this page only the Ergotron HX and the Hexcaltake a 200mm head; the HUANUO, VIVO and ULTRARM cap at 100mm. Check the back of your screen first — VESA and weight ratings explains what the standard does and does not promise you, and it is not “this will fit”.

The warranty, or the silence where one should be. This is the longevity slot, the third number on every product page here, and it splits the group cleanly. Ergotron publishes ten years and VIVO three. The HUANUO, ULTRARM and Hexcal publish no warranty term at all— the Hexcal offers only a 30-day return window. On a heavy screen, the realistic failure of a gas arm is a cylinder that sags over years, which is exactly the failure a long warranty is for. Where a maker states no term, the slot is a dash, and that dash is a manufacturer’s silence, not ours.

What we did not rank on: brand cachet, finish, and how an arm photographs. Also not ranked, and worth saying plainly — feel. We have not glided any of these under a real screen, so a verdict on how smoothly one moves would be invented, and inventing it is the one thing this site exists not to do. The height goal all of them are chasing is OSHA’s, not ours: “the top of the monitor should be at or slightly below eye level”, at a viewing distance “between 20 and 40 inches”, set the way we describe on the monitor height guide.

The 27 kg question

A lot of people arrive here having searched some version of “27 kg heavy duty monitor arm”. It is worth answering that one head-on, because the honest answer is not the one the listings imply, and it is the whole reason this page is shaped the way it is.

Twenty-seven kilograms is about 59.5 lb. Look down the page and there is a number that seems to meet it: the Hexcal’s up to 59.4 lb. But that is a headlineceiling, and Hexcal’s own documentation tells you so. Its practicalrating — the figure it gives for the real, named ultrawides it is built for, the Samsung Odyssey and LG UltraGear panels — is 48.4 lb, which is 22 kg. So the arm with the highest number on the page holds about 22 kg in practice, by its maker’s own reckoning. Every other arm here tops out lower still, around 22 kg / 44–48 lb.

Which means the real answer to “is there a desk arm that holds 27 kg” is: not really. Desk arms top out around 22 kg. And the more useful follow-up is what a genuine 27 kg screen actually is — because at that weight it is not a monitor, it is a television. A 27 kg display belongs on a wall mount or a floor stand rated for a TV, not on a clamp gripping the edge of a desk. The physics does not care how the arm is marketed: hang 27 kg off a desk-edge clamp and the desk becomes the failure point long before the arm does.

So if you came here for 27 kg, the best thing we can tell you is to re-check your screen’s actual panel weight before you spend anything. The overwhelming majority of the “heavy” monitors people worry about — even a 49″ super-ultrawide — come in comfortably under 22 kg once the stand is off, and land inside the range of the arms on this page. The ones that genuinely weigh 27 kg are TVs, and no arm here is for a TV.

What heavy-duty costs you

Buying up into this category buys capacity, and capacity has three prices the listings do not itemise.

It loads your desk.A heavy screen on a desk-edge clamp is a lever, and the longer and heavier the screen, the more it tries to peel the clamp off the edge or crush a soft top under it. The arm’s rating assumes the desk can take that; a thin, hollow-core or glass top often cannot. This is where a grommet mount earns its place — it passes the load down through a bolt in a drilled hole rather than pinching the edge, and we lay the choice out on clamp vs grommet. Before you match a screen to an arm, match the whole load to the desk it clamps to; on the heaviest picks here the desk is the real limit.

It raises the floor.Every arm here is tensioned for a heavy screen, and that tension is the reason a light monitor floats on it. The Ergotron HX will not hold a screen under 20 lb still; the HUANUO’s published floor is 6.6 lb, low enough for a mid-weight panel, while VIVO does not clearly state a minimum at all. The floor is not a footnote on a heavy-duty arm — it is half the reason to read the range, because the stronger the arm, the narrower the band of screens light enough to be a problem and heavy enough to need it.

It makes you choose a mechanism.Four of these five move on a gas or pneumatic spring; the Ergotron HX uses a mechanical Constant Force counterbalance instead. The gas arms are easier to glide and re-aim, which is a real day-to-day pleasure. The mechanical arm is firmer to move but has no cylinder to slowly lose pressure — and a sagging cylinder under a 40 lb screen is precisely the failure a long warranty exists to cover. On a heavy screen you keep for years, that trade is the argument for the Ergotron, and gas spring vs mechanical walks through both sides of it.

How to choose

Do the free part first. Weigh your screen with the stand off, read its VESA pattern off the back, and be honest about how strong your desk is. Those three answers pick the arm, and none of them costs anything.

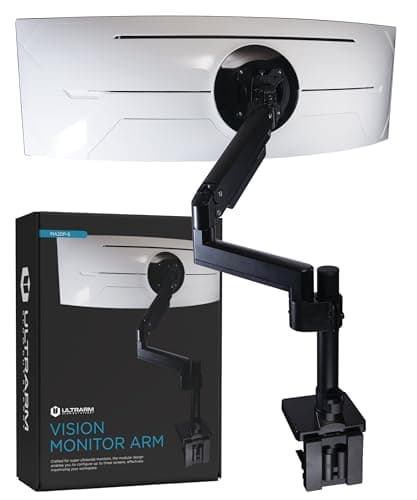

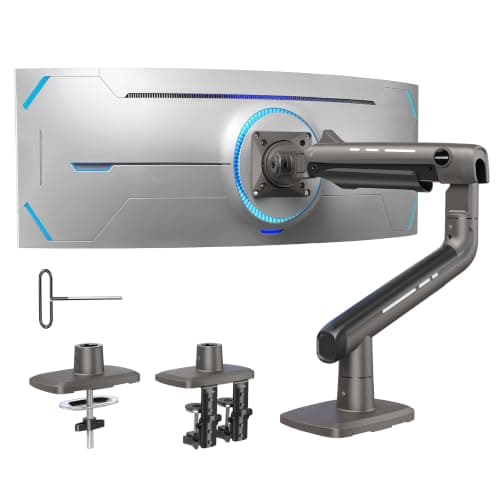

If you want the screen you can hand down to the next monitor and your panel is over 20 lb, buy the Ergotron HX— the longest warranty here, a cylinder-free mechanical movement, and a 200mm head for a big panel. If you want the most capacity for the least money and a published warranty is not what you are buying on, the HUANUO TitanLift holds 44 lb for entry-level money, as long as your panel is 100mm VESA. If you want an established brand with a real warranty and your screen is not one of the very heaviest, the VIVOis the safe middle at 33 lb and three years. If your screen is a very wide 57″ ultrawide, or you want a rig you can expand, the ULTRARM reaches widest and grows with extension arms. And if you have a genuinely big, heavy 200mm-pattern panel, the Hexcalis the most direct fit — provided you plan around its practical 48.4 lb rating, not its 59.4 lb headline, and accept a 30-day return in place of a warranty.

One rule ties all five together: check the floor as carefully as the ceiling, and check your desk as carefully as the arm. A heavy-duty arm that is too strong for your screen or too heavy for your desk is not a better arm — it is the wrong one, bought on the biggest number.

What we didn’t test

We have not mounted a monitor on any of these arms. No screen was hung, no clamp was torqued onto a real desk, no gas cylinder was left under load for a year to see whether it sagged. What we did was read each manufacturer’s or brand-owner’s own listing, pull the weight range, the VESA fit and the warranty, and cite every one — our methodology page sets out the procedure and its limits.

So this page cannot tell you whether the HUANUO’s movement stays smooth after a year, whether the Hexcal’s clamp bites a soft desktop, or whether the ULTRARM’s extension arms feel solid once stacked. Those need hands, and owner reviews will serve you better there than we can. Two honest notes in that direction: the HUANUO’s 50,000-cycle and 3×-load claims and Ergotron’s cycle testing are each the brand’s owninternal tests of different things — not a third-party standard, and not comparable to one another. Lining them up in a table would be a lie told with true numbers.

And where a manufacturer publishes no figure, the Spec Line shows a dash. Three of the five warranty slots here are dashes, and every one is a maker’s silence rather than an oversight of ours. We could have turned “heavy duty” into a reassuring warranty figure nobody would have queried. That is exactly the reason not to.
