The best standing desk frames for a DIY desktop

Most standing-desk shopping starts with a complete desk: legs and top, one box, one decision. This page is for the buyer who wants to make two decisions instead of one — who has a top already, or wants to build one, and just needs the motorized legs underneath it. That buyer is shopping a different category than our complete-desk roundup, and it deserves its own ranking rather than a footnote on that page.

A frame is, in the most literal sense, half a desk. You are buying the part that lifts and the part that has to hold everything you put on it — and neither of those jobs has anything to do with what the finished surface looks like. So we ranked five real, currently-purchasable frames on the specs that actually decide whether the desk you build from one fits your body and survives a decade: how low it goes, how much it holds, and how long the manufacturer stands behind it.

What we ranked on, and why

Every frame here advertises how high it reaches. Almost none of them lead with how low it goes, and that is the backwards half of the spec sheet for anyone who is not tall. So the criteria, in order:

1. Floor height.The published low end of the frame’s range. This is the ranking spec — the number that decides whether the desk you eventually build sits low enough for a seated posture, or whether you’ve bought an expensive way to build a desk that’s still too tall.
2. Weight capacity.What the frame will actually lift, which matters more here than on a complete-desk page because you are also choosing the top’s own weight — a thick hardwood slab eats into a frame’s stated capacity before a single monitor goes on it.
3. Warranty, and how it's worded.The longevity slot, as on every product page on this site. Five different manufacturers publish this five different ways here — flat years, “up to” years, and months — and the wording turned out to matter almost as much as the number.

What we did not rank on: finish, keypad design, brand recognition, or how a frame photographs next to a finished desk. Those are real preferences. They are just not the ones that decide whether the thing works for your body.

The floor is the whole point of buying a frame separately

Across these five frames, the published floor runs from 21.6″ (UPLIFT) to 28.5″ (VIVO) — a spread of nearly seven inches. That is the difference between a frame that reaches a short seated posture and one that, at the bottom of its travel, is basically a standard fixed desk with a motor bolted on.

And every one of those numbers is the bare frame. None of the five manufacturers here publish a with-desktop figure, which means the floor you actually get is always a little higher than the one printed on the spec sheet — and how much higher depends entirely on the top you choose. A quarter-inch laminate panel barely moves the number. A thick hardwood slab, the kind of top a lot of people buy a bare frame specifically to use, can add a meaningful fraction of an inch on its own. That is the arithmetic a complete desk has already done for you and a frame has not — it is the trade you are making by choosing this category at all.

The warranty gap between frames that look nearly identical

Photographed from three feet away, these five frames look like the same product in five colors: two motors, a telescoping column, a keypad. Read the warranty language and they are not. UPLIFT states a flat 15-year warranty on the spec sheet itself. Progressive Automations states 96 months— 8 years — in its own specifications table. TOPSKY states a flat, unhedged 5 YEAR warranty directly on the product page. HUANUO states only “up to 5-Years”, without saying which parts that ceiling actually covers. And VIVO, alone among the five, spells its 3-year term out in a full sentence on a dedicated policy page rather than a spec-table line or an icon.

That last distinction is worth pausing on. TOPSKY’s flat “5 YEAR” and HUANUO’s “up to 5-Years” both read, at a glance, like the same five-year promise. They are not the same claim. One is unconditional as published; the other reserves the right to cover less, and does not say for which parts. We quote each manufacturer’s own wording in the Spec Line rather than rounding both down to “5 yr” and erasing that difference.

The TOPSKY-vs-Progressive-Automations tie is the clearest example of why this page ranks in the order it does. Both publish a 23.6″floor — a genuine tie on the number we ranked first. TOPSKY wins the next criterion, capacity, at 300 lbs against Progressive Automations’ 270. Progressive Automations wins the criterion after that, warranty, at 8 years against TOPSKY’s 5. Ranked floor-height-then-capacity-then-warranty, TOPSKY takes second and Progressive Automations takes third — but if durability matters more to you than the extra 30 lb of capacity, that order should flip for your purchase even though it doesn’t for this page.

What a frame doesn't include, and what that buys you

None of these five ship with a top, a keyboard tray, or grommets cut to fit anything — you are buying the mechanism, full stop. What that buys you is a top that is actually yours: a specific wood species, a specific edge profile, a reclaimed door, a slab that matches furniture you already own, or simply a cheaper flat panel from a hardware store if the frame is the part you actually cared about. A complete desk decides all of that for you in exchange for arriving as one finished object.

The width figures each manufacturer publishes are the number to check before you buy a top, not after. TOPSKY’s frame adjusts 43–67″ including its side brackets; Progressive Automations’ goes wider, 43.0–72.4″; UPLIFT’s C-frame runs 41.3–72.2″; HUANUO states compatibility up to a 90″ × 31.5″ top, the widest published figure here; and VIVO states up to 77″ × 43″. None of the five publish a maximum top thickness or weight on their own, so a very thick slab is a number to weigh against the frame’s stated lifting capacity yourself, not something any of these five manufacturers has already checked for you.

The FlexiSpot gap

FlexiSpot is a large enough name in this category that its absence is worth explaining rather than leaving silent. We tried flexispot.com’s root domain and two specific product pages on 2026-07-26, and every one returned an HTTP 403 error to an automated fetch — the same wall we hit researching the complete-desk roundup. No figure from FlexiSpot’s own site could be read at its source, so no FlexiSpot frame appears here. FlexiSpot desks may well be good frames. We are not in a position to say, because we could not read a single spec ourselves.

Two other brands were checked and dropped for narrower reasons. ErGear’s own site lists six complete desks and, as far as we could find, does not carry the bare-frame SKU sold on Amazon at any URL of its own — only third-party retailers publish that spec sheet, and we do not cite a retailer for a number the manufacturer itself does not put on its own page. Branch does not sell a frame-only SKU at all; the Duo always ships with its own top, which is why it belongs on the complete-desk page and not this one.

What we did instead of testing

We have not assembled any of these five frames, lifted a desktop on one, or timed a motor with a stopwatch. What we did was read each manufacturer’s own product page or spec sheet, pull the three numbers that decide the purchase, and cite every one so you can check us. Where a figure was stated with a qualifier — “up to,” a badge instead of a sentence, months instead of years — we kept that qualifier rather than smoothing it into a rounder-looking number. Our methodology pageexplains what reading a spec sheet can and cannot tell you, and for a frame in particular it cannot tell you how the keypad feels to press, whether a specific top’s screw pattern lines up cleanly with the frame’s mounting brackets, or how the whole assembly holds up after a hundred cycles in a real room. For that half, an owner who has actually built one is worth more than we are.

How to actually choose

Start with your own number, not the frame’s. The desk height calculator works out the seated height your elbows need in about a minute; add your intended top’s thickness to whatever floor a frame publishes, and you have the real number to compare against your own. For a lot of shorter buyers that step alone rules out three of the five frames on this page before price ever enters the decision.

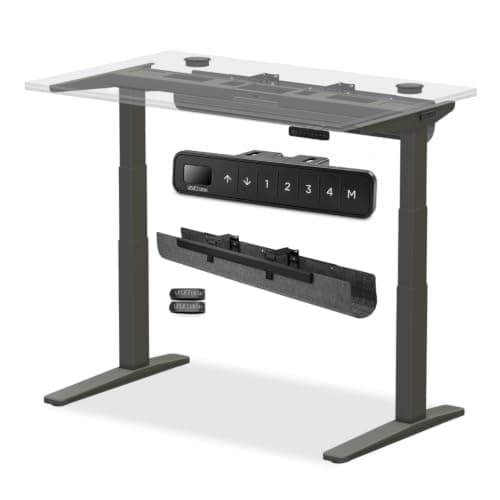

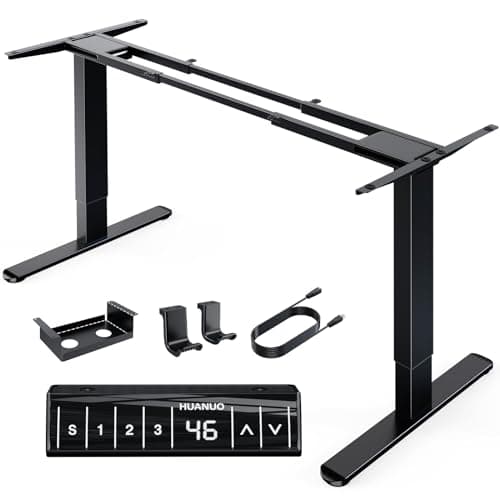

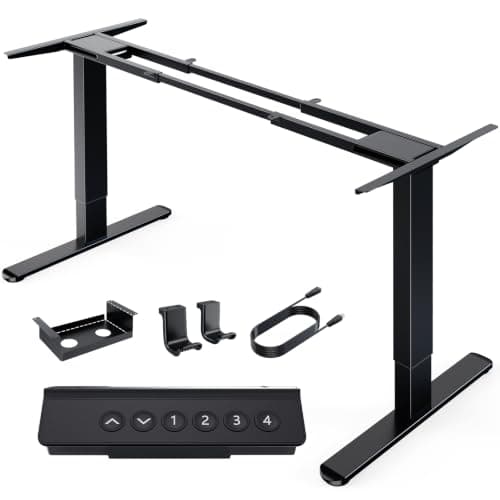

If your number is low and you are buying once, the UPLIFT is the frame built for that: the lowest floor, the highest capacity, and a flat 15-year warranty to match the price. If you want most of that performance without the flagship cost, the TOPSKYmatches UPLIFT’s floor almost exactly and only gives up capacity and warranty length, not fit. If a wide desktop and a stated multi-year warranty in precise months matter more than the last 30 lb of capacity, the Progressive Automationsframe is the honest middle option. If your budget is the deciding constraint and you already know you don’t need the lowest floor, the HUANUOgets you onto a real dual-motor frame for a fraction of the others’ price. And if you sit at a fairly standard height already and want a recognizable brand with its warranty spelled out in plain language, the VIVO is the straightforward choice.

Whichever frame you choose, budget time for two more decisions this page deliberately doesn’t make for you: the top itself, and the cable slack a moving desk needs from day one — our cable management guide for standing desks covers the second. And if the desk you build ends up feeling loose once it’s assembled, that is very often the top’s mount rather than the frame itself — the fixes are on how to fix a wobbly standing desk.
